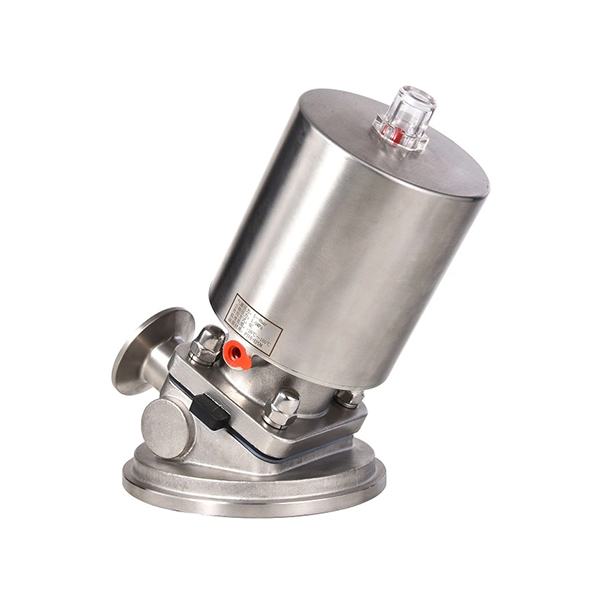

Sanitary Pneumatic Clamped Tank Bottom Diaphragm Valve

Sanitary Pneumatic Tank Bottom Diaphragm Valve

• sanitary tank bottom (tank outlet) valve is widely used for Medical and pharmaceutical industries. It is widely used for draining in tanks and processing vessels.
• The diaphragm provides the body seal as well as the seat seal.There are no paths to the outside environment so it suitable for aseptic processes. When the valve is closed a pressure pad which supports the diaphragm moves towards the sealing face on the body.When the pressure plate moves the diaphragm flexes and is forced down onto the seat area in the centre of the body,thus, closing off the flow path through the body.The inter relationship of body to the pressure plate prevents over compression of the diaphram.The valve can be manual operation and pneumatic operation control tops of solenoid valves.
