Sanitary Stainless Steel Clamp Fixed Pressure Reduce Breather
- Certification:
- CE, ISO9001/2008, 3A
- Transport Package:
- Shrink wrapped/ carton/ pallet. Or as per the request of customers
- Payment:
- T/T, L/C, Western Union
- Medium:
- Water, Oil
- Material:
- SS304 SS316
- Connection:
- Welded/Clamped/Threaded
- Standard or Nonstandard:
- 3A/ DIN/ SMS/ ISO/ IDF/ JIS
- Pressure:
- 0.5~2Bar 0.3~0.9Bar
- Surface treatment:
- mirror polish,matte polish
- Size:
- 1/2"- 4", DN10 - DN100

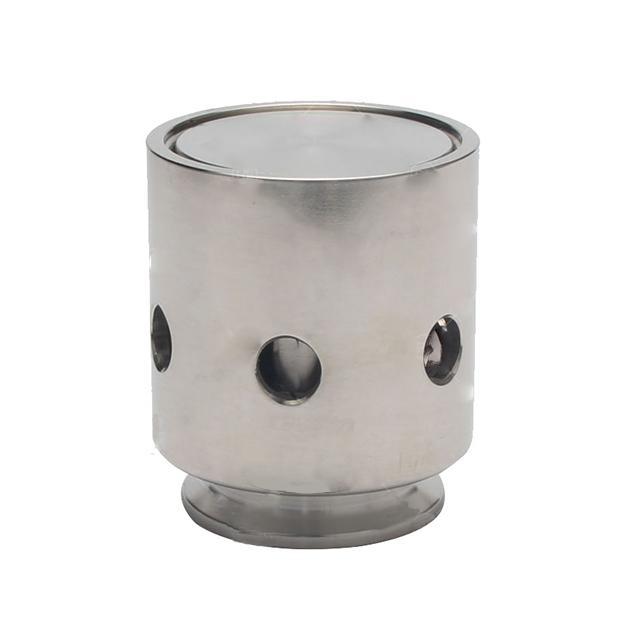

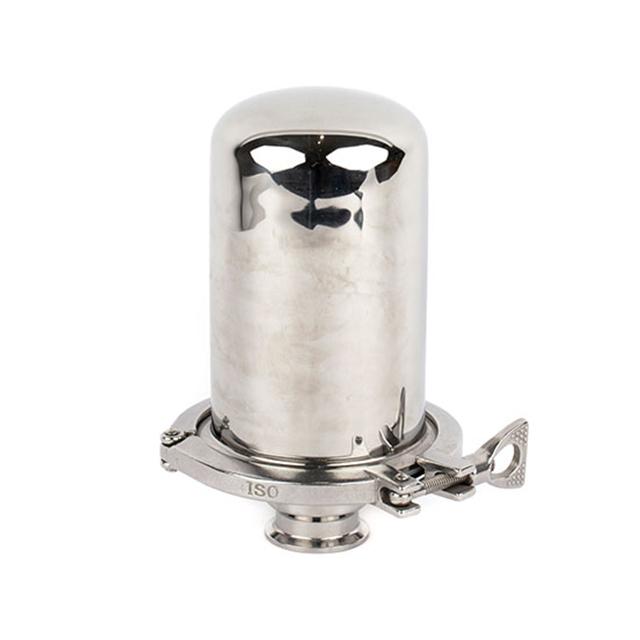

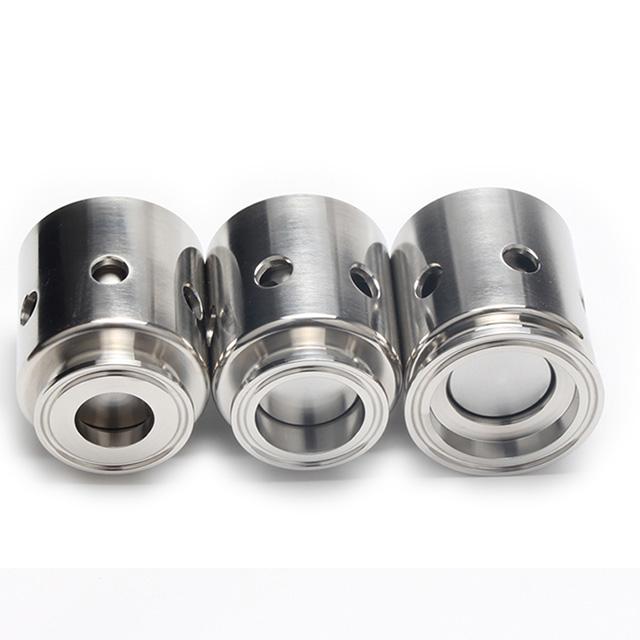

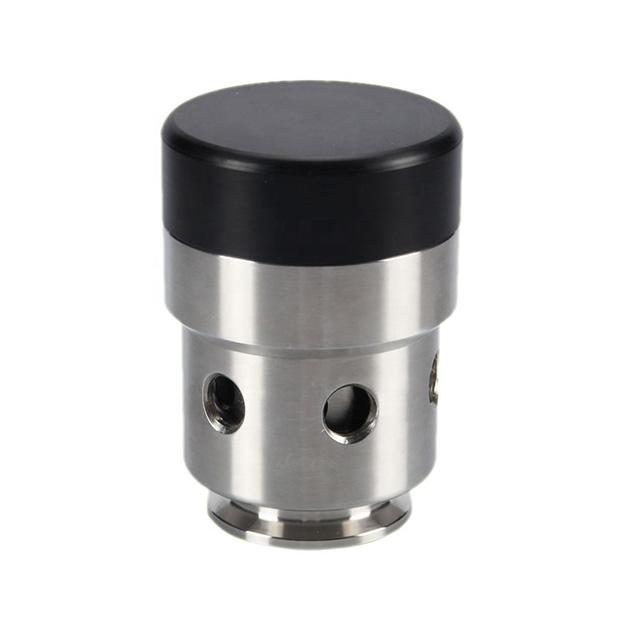

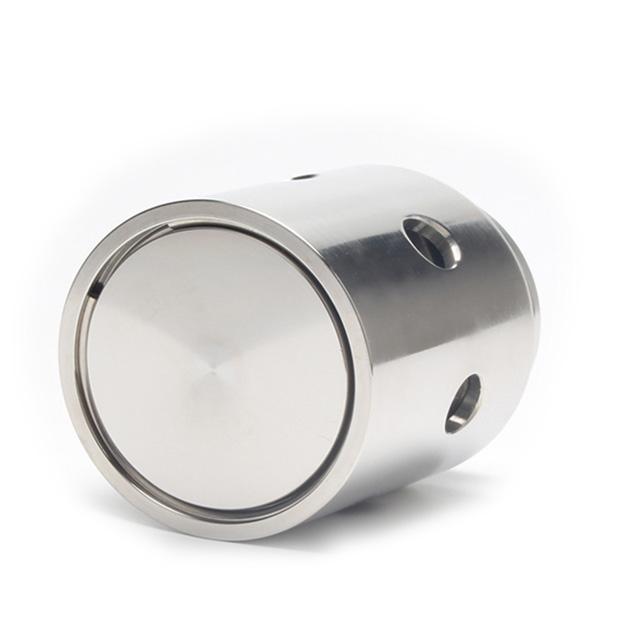

Sanitary Stainless Steel Clamp Fixed Pressure Reduce Breather
Sanitary Breather is a self-acting device,or could be manually operated to exhaust air from tank.With Pressure gauge installed,so that pressure can be monitored precisely.The valves are used to release pressure through pipelines,tanks,pumps,etc.In this way,the valves can avoid equipment failure that caused by exceeded pressure and protect people and plant from danger
| Connection Way | Welding,Clamp,Thread |
| Material | SS304 SS316L |
| Shape | Round |
| Size | 1"-2"/ DN25 - DN50 |
| Standard | 3A DIN SMS |
| Technics | Forged |
| Temperature Range | -10 Degree Celsius~120 Degree Celsius |
Applications
Our products are widely applied to dairy, food, beer, beverage, chemical industrial of equipment, and cosmetic industries. All technical aspects have reached the international leading levels and are in conformance with GMP requirements.
Product Description
The valve is used in pressure vessel piping systems.Breathing valve has two functions, when the pressure is higher than the set pressure (standard 1 BAR) can exhaust, whereas closed, while vacuum piping system (standard 0.2 BAR) when the valve opens automatically, to ensure the safety of the equipment and related instrumentation protection, at the same time can also meet the demand in all kinds of production process, the valve in stainless steel material, health design, content with all sorts of food processing, beer, beverage and pharmaceutical and other industries.
