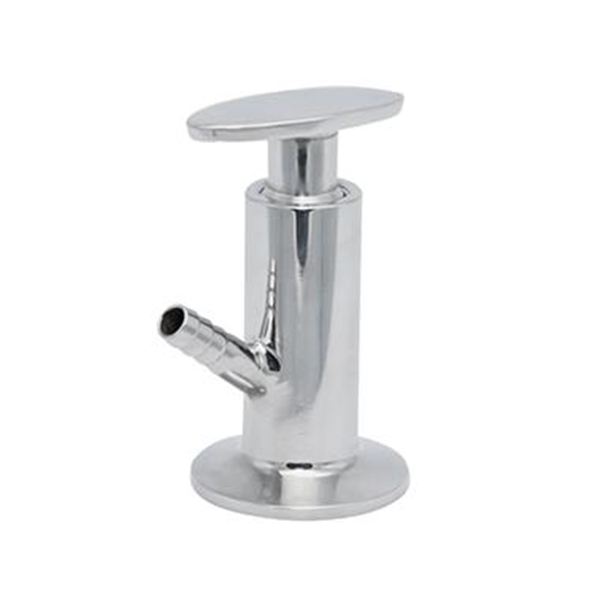

Sanitary Stainless Steel Ordinary Clamp Sampling Valve
- Certification:
- CE, ISO9001/2008, 3A
- Transport Package:
- Shrink wrapped/ carton/ pallet. Or as per the request of customers
- Payment:
- T/T, L/C, Western Union
- Medium:
- Water, Oil
- Material:
- SS304 SS316
- Connection:
- Welded/Clamped/Threaded
- Standard or Nonstandard:
- 3A/ DIN/ SMS/ ISO/ IDF/ JIS
- Temperature:
- -10℃、50°F - +120℃/248°F
- Surface treatment:
- mirror polish,matte polish
- Size:
- 1/2"-1.5",DN6,DN8,DN15
Sanitary Stainless Steel Ordinary Clamp Sampling Valve
Aseptic Sampling Valve are measured and designed for sampling medium viscosity products with about 0-1,000cP in viscosity and with particles up to 3mm in diameter. Such as Unprocessed Milk, Medical solutions, Filtered and unfiltered beer, Perfume, Creams and lotions, and much more. it can supple the valve specifition to customer: first one use to treatment low viscosity materials. such as water,beer,wine,fluid mike and so on; secone one use to trea high viscosity materials, such as nutlet yoghout, syrup,ice cream and so on
| Connections | Thread,Clamp,Weld |
| Material | SS304,SS316L |
| Operated | Manual, Pneumatic |
| Size | 1/2"-1.5",DN6,DN8,DN15 |
| Gasket | PTFE |
| Working Pressure: | Vacuum-10Bar 145PSI |
| Working Temperature | -20℃ - +120℃ |
Applications
It 's mainly applied to extract sample from tank or pipeline. it also can be assembled at the bottom of the tank or pipeline to frain away the remains.
Aseptic Sampling Valve are measured and designed for sampling medium viscosity products with about 0-1,000cP in viscosity and with particles up to 3mm in diameter. Such as Unprocessed Milk, Medical solutions, Filtered and unfiltered beer, Perfume, Creams and lotions, and much more.
Design and features
♦ Available steam or alcohol for fisintection of the oringinal.
♦ Use the diaphragm to seal the material.
♦ It is typical sampling and good repeatability to sample.
♦ Use this type valve, secondary pollution can be prevented, can be used as a large number of sampling or mirco-sampling.
