Stainless Steel Pipe Fitting SS304 Female Thread Cross Joints

Certification:
CE, ISO9001/2008, 3A
Transport Package:
Shrink wrapped/ carton/ pallet. Or as per the request of customers
Payment:
T/T, L/C, Western Union
Material:
SS304 SS316
Connection:
Threaded
Specification:
1/4"-4"
Standard or Nonstandard:
3A/ DIN/ SMS/ ISO/ IDF/ JIS
Surface treatment:
mirror polish,matte polish
Enquiry

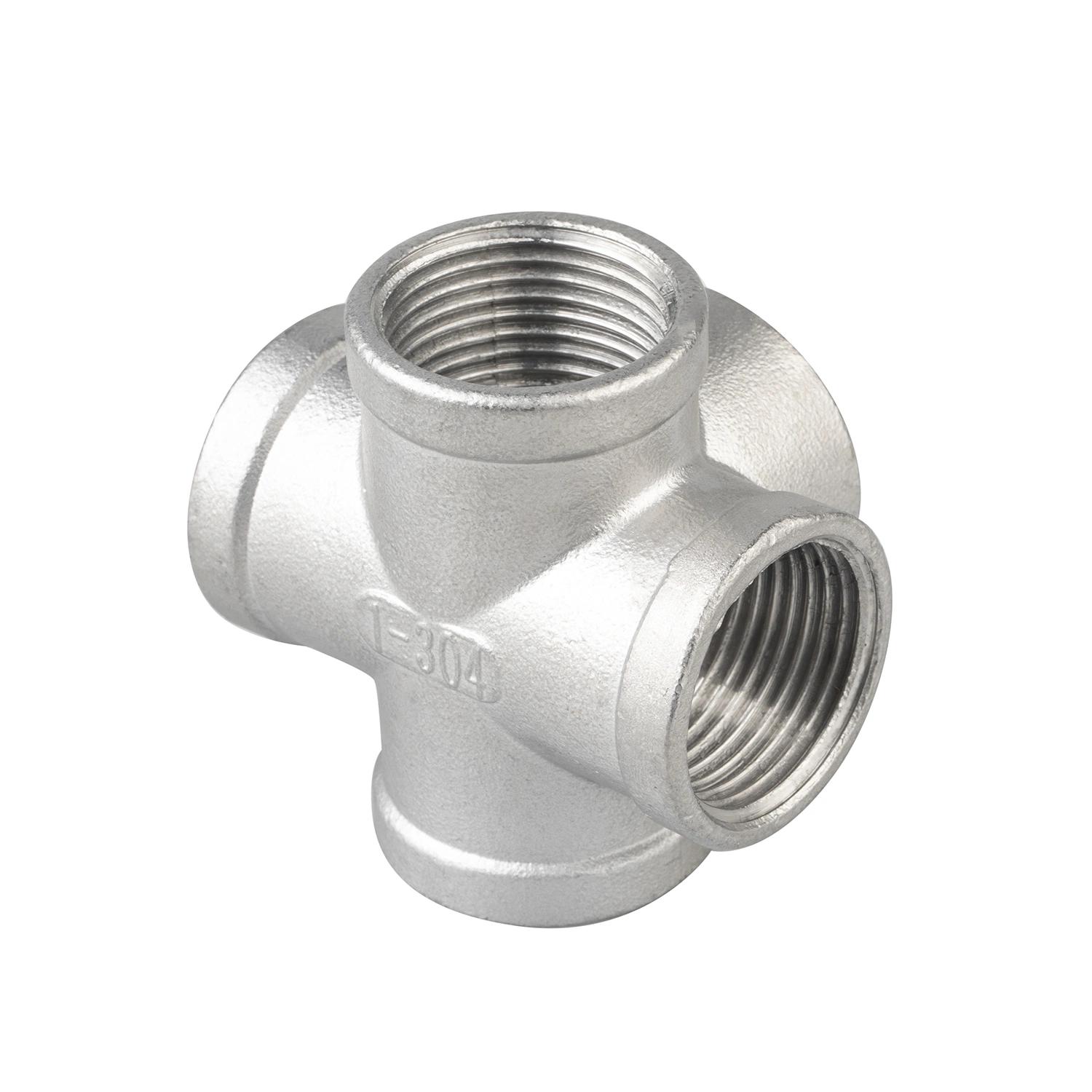

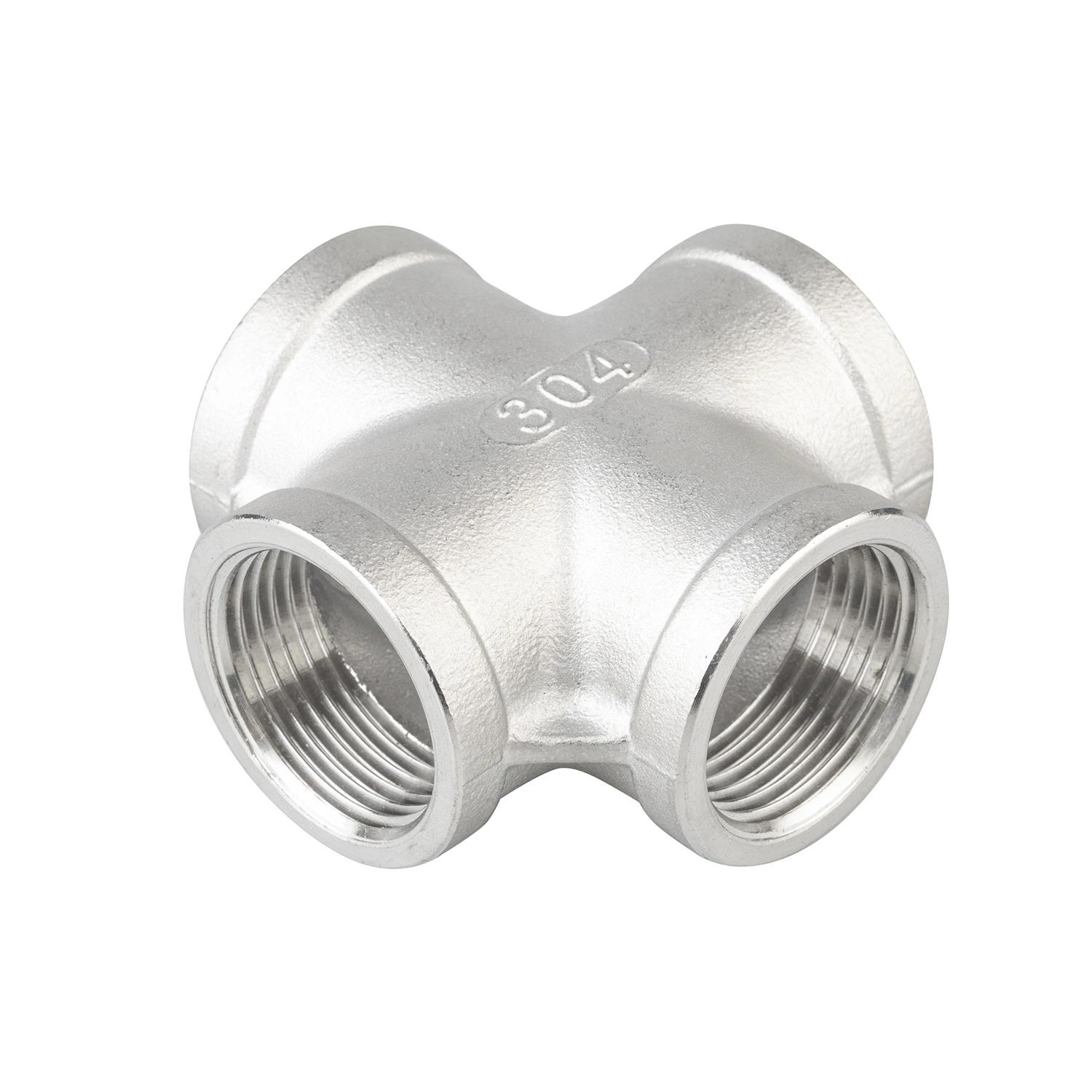

Stainless Steel Pipe Fitting SS304 Female Thread Cross Joints

An Cross pipe is a type of pipe fitting that allows for a change in the direction of the piping system. It is designed to facilitate a change in the flow direction of fluids (liquids or gases) within a pipeline.

They are used when a change in the direction of flow is needed.

These fittings are crucial for routing pipelines around obstacles, navigating tight spaces, or simply changing the direction of fluid flow within a system. Elbow pipes are available in different materials such as metal (like stainless steel or copper), PVC (polyvinyl chloride), or other plastics, chosen based on the specific requirements of the application and the nature of the substances being transported within the piping system.

Stainless Steel Pipe Fitting SS304 Female Thread Cross Joints
Size 1/8"-4"
Material we can do Stainless steel 304
Material in stock ASTM A351 CF8(304), ASTM A351M CF8M(316)
Thread  BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B 0203/2(PT), KS B0221/2(PT), etc..
Working Pressure 150LB
Temperature -20°C to +220°C
Physical Property Tensile strength≥485Mpa, Yield strength≥205Mpa, Elongation≥35%
Surface Pickling and Peeling
Model Cross
Connection   Internal thread
Shape Equal
Certificate ISO 9001:2015, ISO14001:2015, CE, ROHS, KC, etc..
Application Suitable for Air, Natural Gas, Oil, Steam, Water and so on.
Package Cartons without pallet
  Cartons with pallet
  Cartons with wooden boxes
  Or as buyer's requirements
Port Ningbo/Shanghai, China
Delivery Details According to the quantities and specifications of each order
  A complete stock to provide fast deliveries for small orders.
  Normal delivery times is from 30 to 45 days after receiving the deposit
Sample Offer free samples and freight collected.
OEM and ODM Accepted and professional. Buyer's drawing or designs are available
Material test report is available upon request when placing order.
