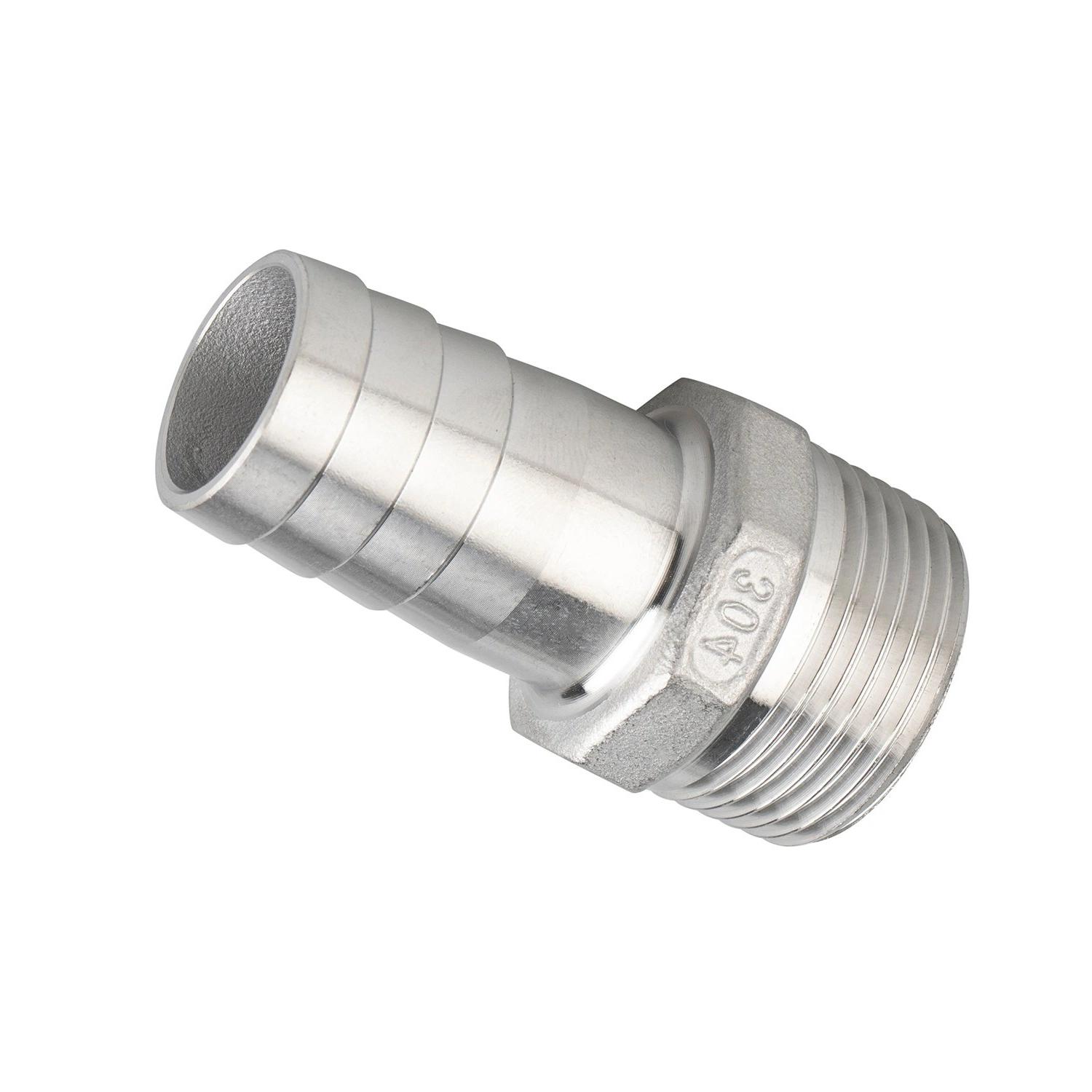

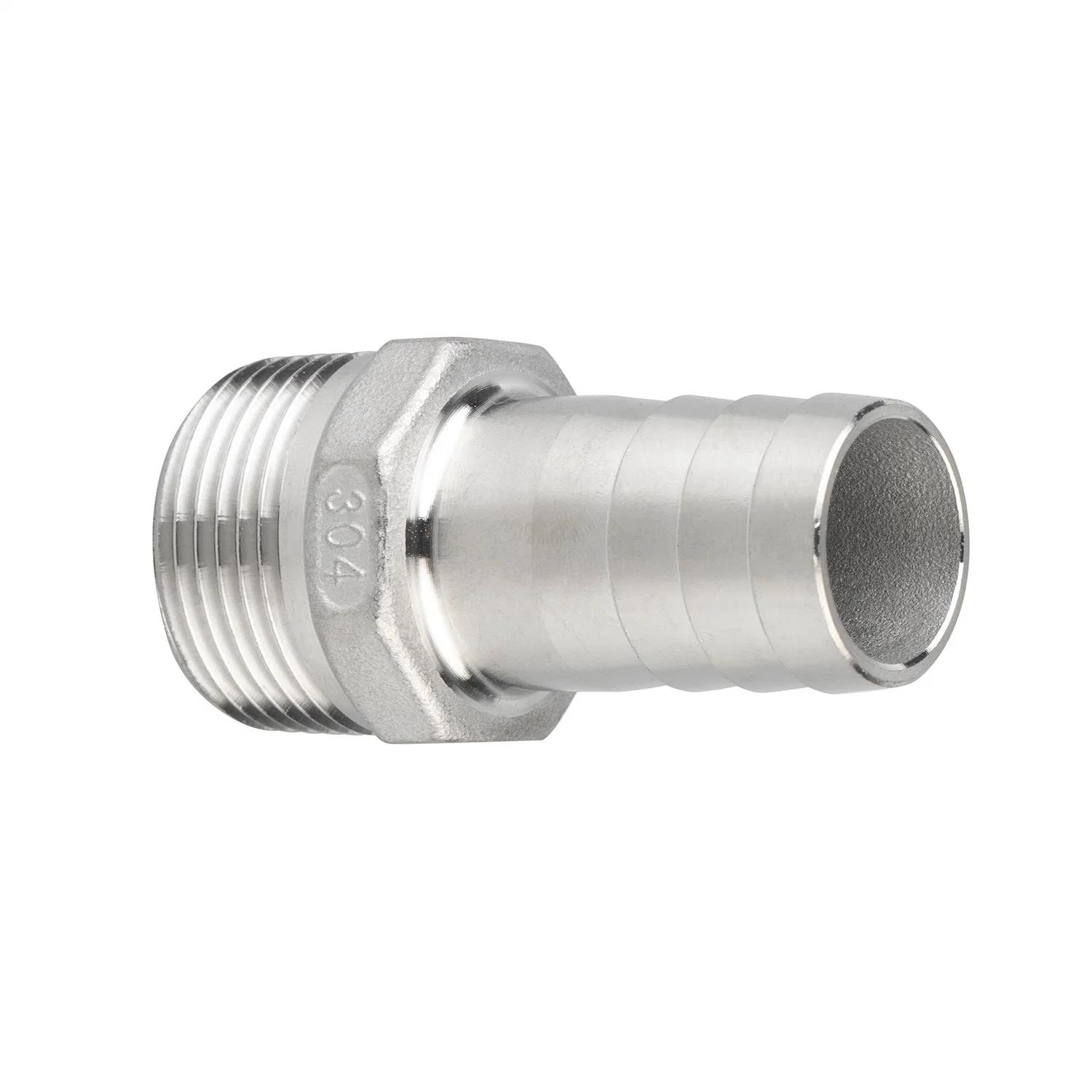

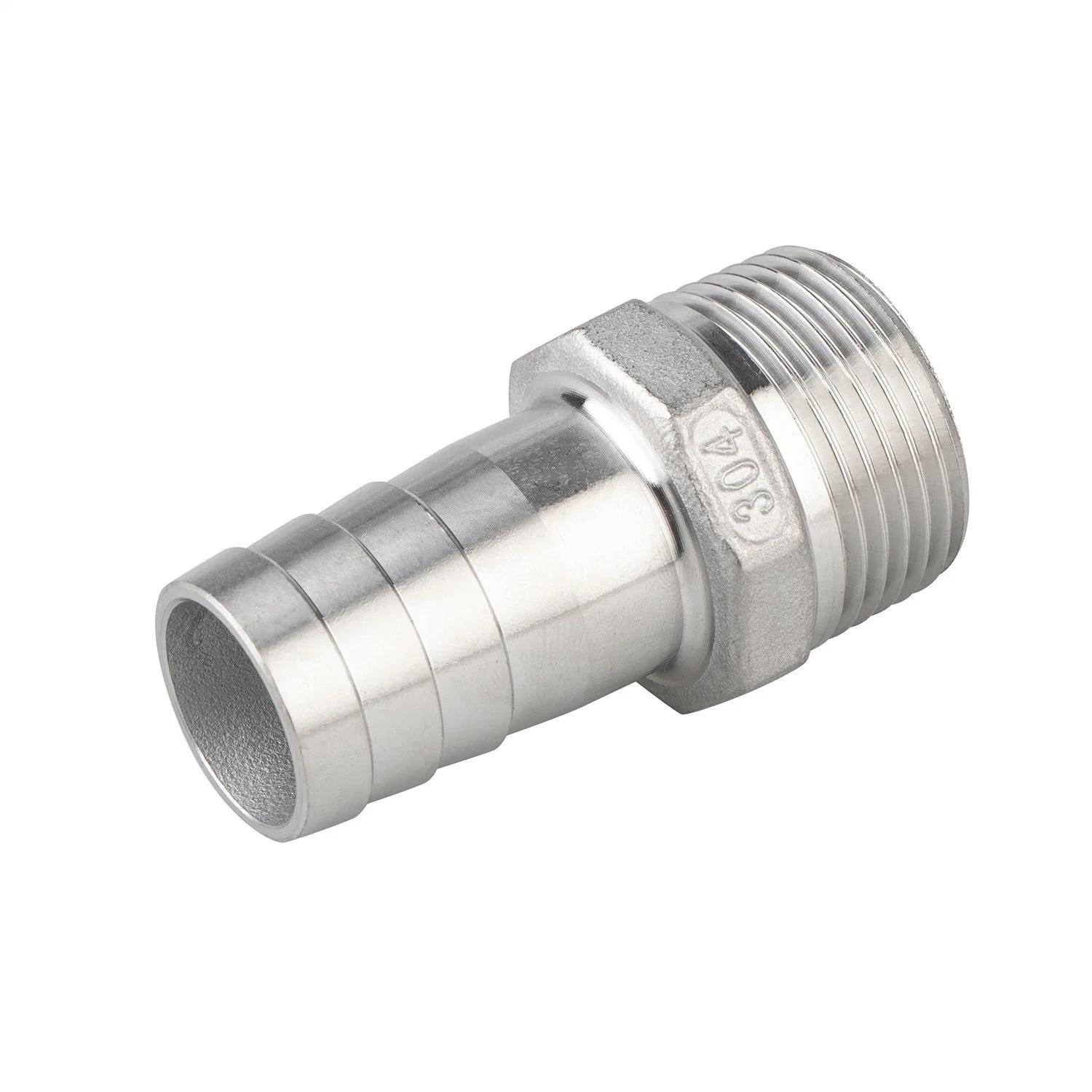

Stainless Steel Pipe Fitting 304 316 1/8"-4" NPT/BSPT Hose Nipple

Certification:
CE, ISO9001/2008, 3A
Transport Package:
Shrink wrapped/ carton/ pallet. Or as per the request of customers
Payment:
T/T, L/C, Western Union
Material:
SS304 SS316
Connection:
Threaded
Specification:
1/8"-4"
Standard or Nonstandard:
3A/ DIN/ SMS/ ISO/ IDF/ JIS
Surface treatment:
mirror polish,matte polish
Enquiry

Stainless Steel Pipe Fitting 304 316 1/8"-4" NPT/BSPT Hose Nipple

A hose nipple is a type of fitting used in plumbing and fluid transfer systems to connect hoses or tubes. It typically consists of a cylindrical piece with external male threads on one end and a barbed or smooth section on the other end.

The male threaded end of the hose nipple is used to connect to a female-threaded fitting or a component, providing a secure attachment point. The opposite end, often barbed or smooth, is designed for insertion into a hose or tubing, creating a tight seal to prevent leaks or disconnections.

Hose nipples are available in various materials like brass, stainless steel, plastic, or other metals, and they come in different sizes to accommodate various hose or tubing dimensions. They are commonly used in applications such as irrigation systems, fluid conveyance in industrial settings, gardening, and in various types of equipment requiring secure hose connections.

Stainless Steel Pipe Fitting 304 316 1/8"-4" NPT/BSPT Hose Nipple
Size 1/8'' ~ 4''
Material we can do Stainless steel 304/304L/316/316L/201
Material in stock ASTM A351 CF8(304), ASTM A351M CF8M(316)
Thread  BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B 0203/2(PT), KS B0221/2(PT), etc..
Working Pressure 150LB
Temperature -20°C to +220°C
Physical Property Tensile strength≥485Mpa, Yield strength≥205Mpa, Elongation≥35%
Surface Pickling and Peeling
Model Reducing Nipple
Connection Male Thread
Shape Reducing
Certificate ISO 9001:2015, ISO14001:2015, CE, ROHS, KC, etc..
Application Suitable for Air, Natural Gas, Oil, Steam, Water and so on.
Package Cartons without pallet
  Cartons with pallet
  Cartons with wooden boxes
  Or as buyer's requirements
Port Ningbo/Shanghai, China
Delivery Details According to the quantities and specifications of each order
  A complete stock to provide fast deliveries for small orders.
  Normal delivery times is from 30 to 45 days after receiving the deposit
Sample Offer free samples and freight collected.
OEM and ODM Accepted and professional. Buyer's drawing or designs are available
Material test report is available upon request when placing order.
