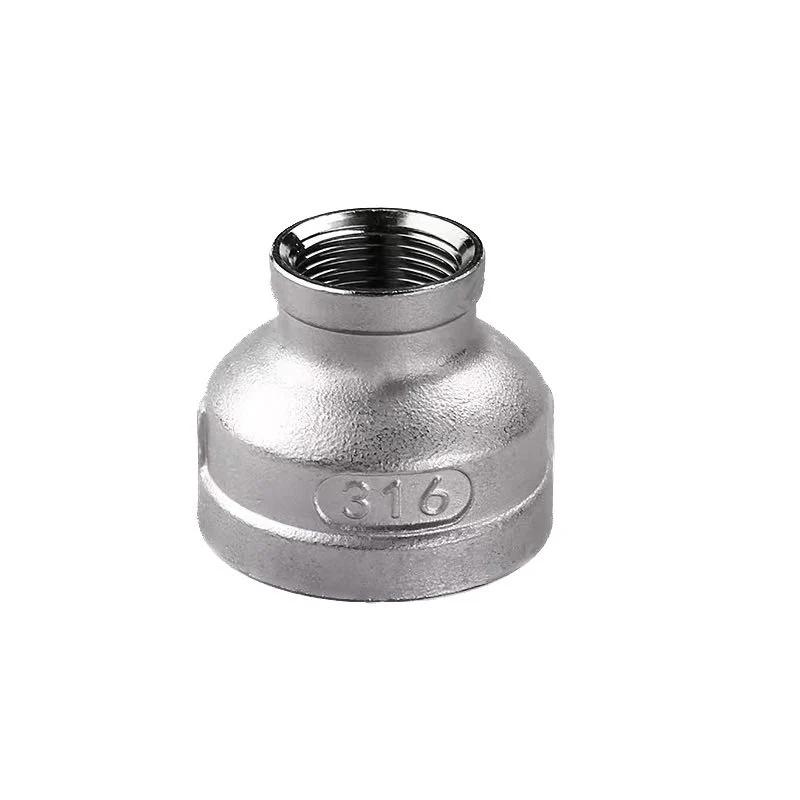

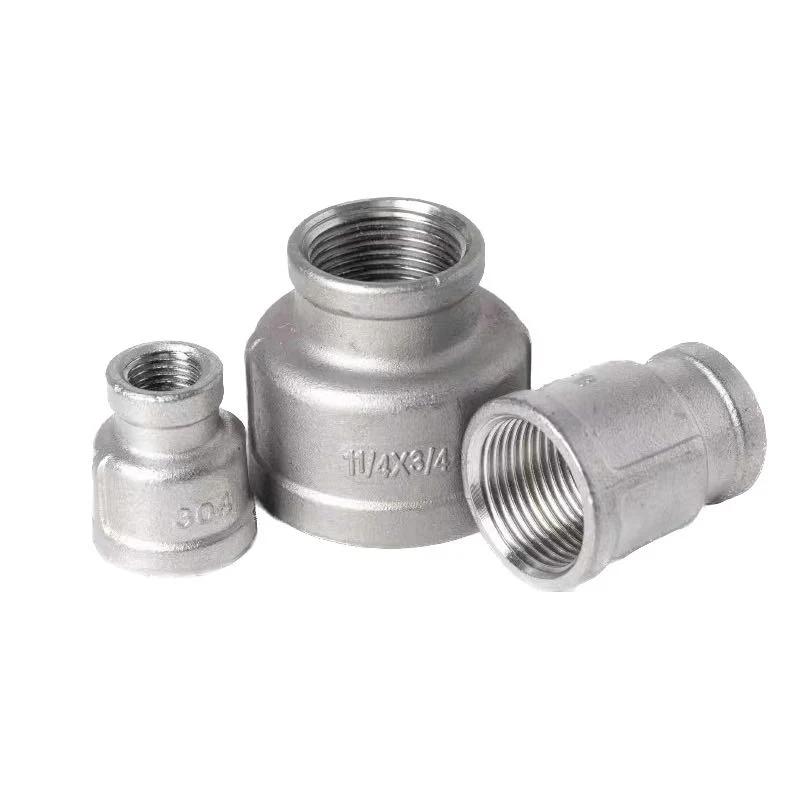

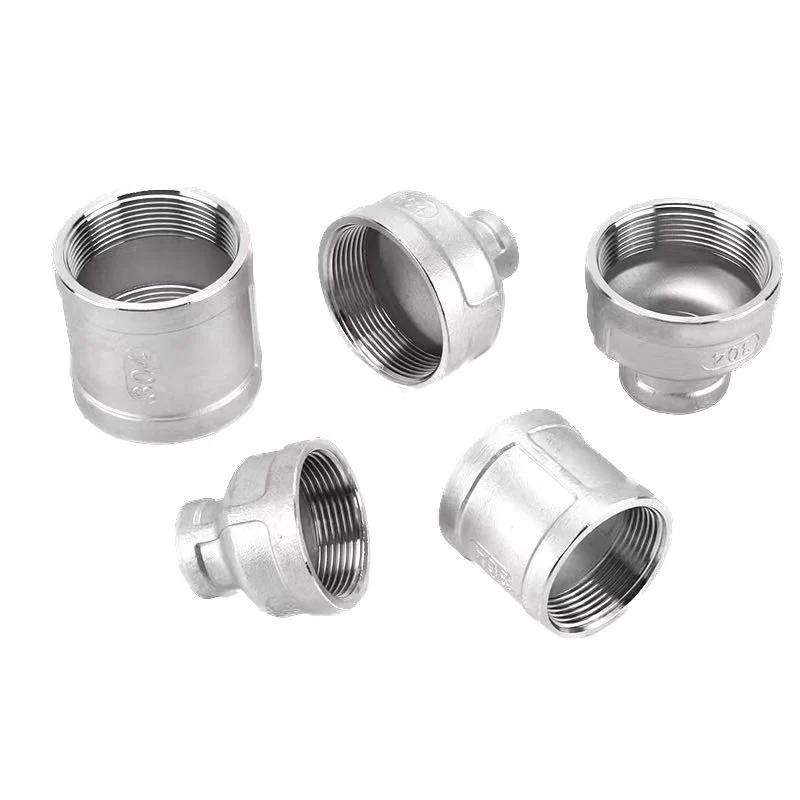

1′′to 2′′ Stainless Steel Reduced Socket Banded 201/304 Pipe Fitting Female Threaded Reducer
- Certification:
- CE, ISO9001/2008, 3A
- Transport Package:
- Shrink wrapped/ carton/ pallet. Or as per the request of customers
- Payment:
- T/T, L/C, Western Union
- Medium:
- Water, Oil
- Material:
- SS304 SS316
- Connection:
- Threaded
- Specification:
- 1/4"-1/8" ~ 4"-3"
- Standard or Nonstandard:
- 3A/ DIN/ SMS/ ISO/ IDF/ JIS
- Surface treatment:
- mirror polish,matte polish
1′′to 2′′ Stainless Steel Reduced Socket Banded 201/304 Pipe Fitting Female Threaded Reducer
An socket banded pipe is a type of pipe fitting that allows for a change in the direction of the piping system. It is designed to facilitate the flow direction of fluids (liquids or gases) within a pipeline.
Socketed banded pipes are most common.
The socket banded pipes are available in different materials such as metal (like stainless steel or copper), PVC (polyvinyl chloride), or other plastics, chosen based on the specific requirements of the application and the nature of the substances being transported within the piping system.
| Stainless Steel Female Thread Casting Pipe Fitting Connector Reducing Socket | |
| Item no. | LT - 03B |
| Size | 1/4"-1/8" ~ 4"-3" |
| Material we can do | Stainless steel 304/304L/316/316L/201 |
| Material in stock | ASTM A351 CF8(304), ASTM A351M CF8M(316) |
| Thread | BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B 0203/2(PT), KS B0221/2(PT), etc.. |
| Working Pressure | 150LB |
| Temperature | -20°C to +220°C |
| Physical Property | Tensile strength≥485Mpa, Yield strength≥205Mpa, Elongation≥35% |
| Surface | Pickling and Peeling |
| Model | Coupling |
| Connection | Female Thread |
| Shape | Reducing |
| Certificate | ISO 9001:2015, ISO14001:2015, CE, ROHS, KC, etc.. |
| Application | Suitable for Air, Natural Gas, Oil, Steam, Water and so on. |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Cartons with wooden boxes | |
| Or as buyer's requirements | |
| Port | Ningbo/Shanghai, China |
| Delivery Details | According to the quantities and specifications of each order |
| A complete stock to provide fast deliveries for small orders. | |
| Normal delivery times is from 30 to 45 days after receiving the deposit | |
| Sample | Offer free samples and freight collected. |
| OEM and ODM | Accepted and professional. Buyer's drawing or designs are available |
| Material test report | is available upon request when placing order. |
