Stainless Steel 304 316 Malleable Pipe Fittings Male Female threaded Union
- Certification:
- CE, ISO9001/2008, 3A
- Transport Package:
- Shrink wrapped/ carton/ pallet. Or as per the request of customers
- Payment:
- T/T, L/C, Western Union
- Material:
- SS304 SS316
- Connection:
- Welded/Clamped/Threaded
- Specification:
- 1/8"- 4"
- Standard or Nonstandard:
- 3A/ DIN/ SMS/ ISO/ IDF/ JIS
- Surface treatment:
- mirror polish,matte polish
Stainless Steel 304 316 Malleable Pipe Fittings Male Female threaded Union

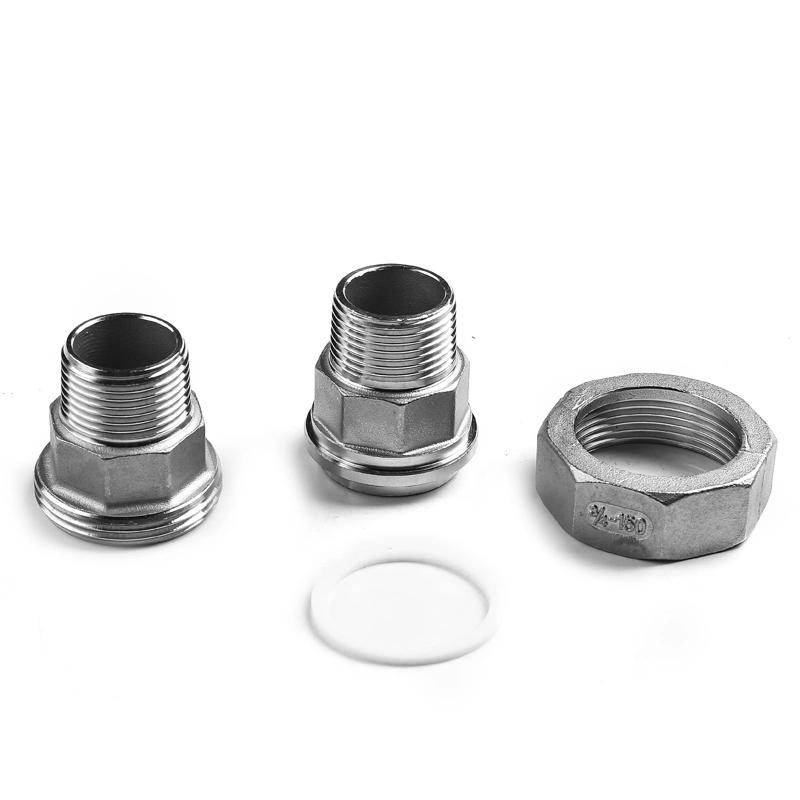

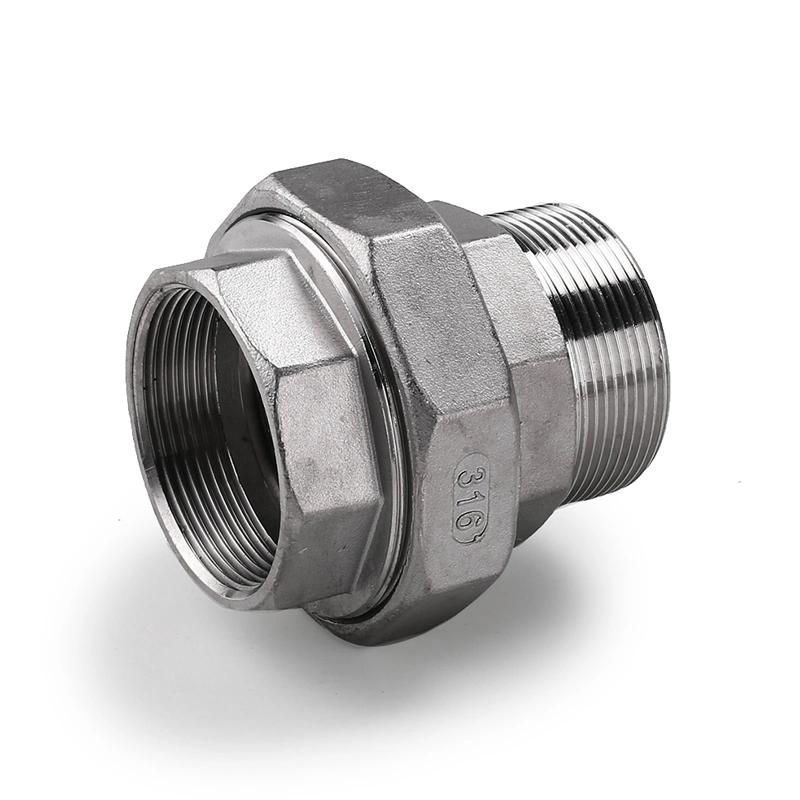

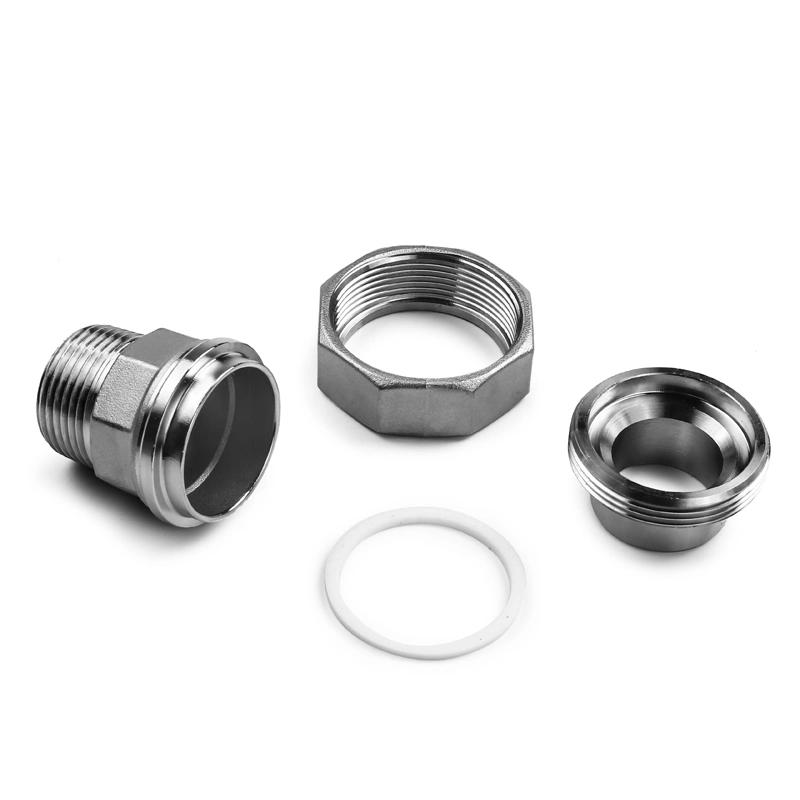

Stainless Steel Union is a type of fitting used in plumbing and piping systems to connect two pipes together in a manner that allows for easy disassembly and reassembly. It is designed to join pipes or tubes of similar or different sizes while providing a convenient means for maintenance, repair, or modifications in the system.

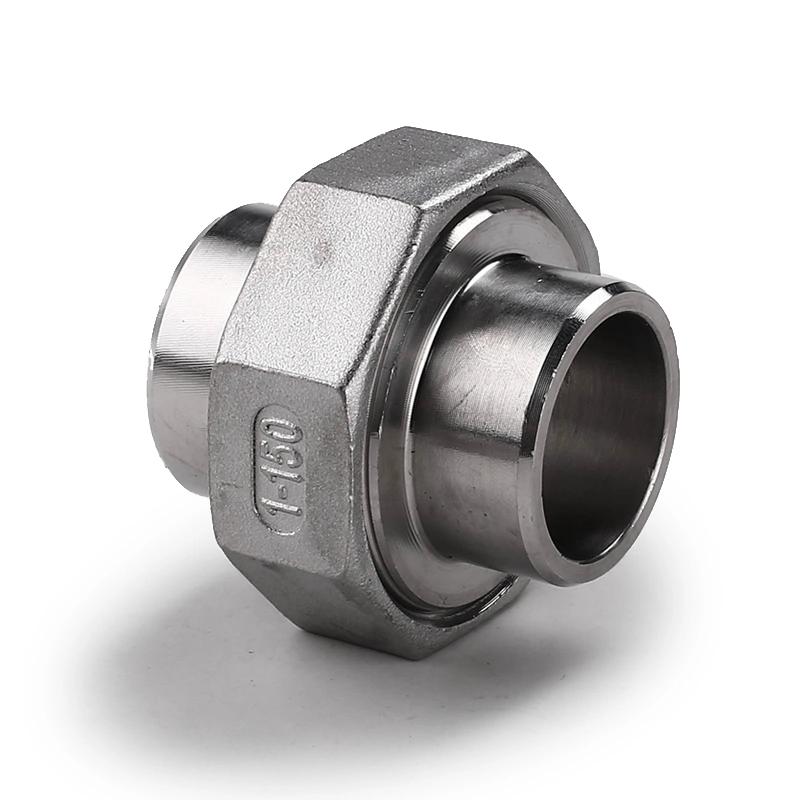

Usedful Connection: Female(Inside) Thread, Male (Outside) Thread, Male to Female Thread, Butt Welding, Socket Welded.
For the Angle: Straight Union and 90 Degree Elbow Union.
| Stainless Steel 304 316 Malleable Pipe Fittings Male Female threaded Union | |
| Size | 1/8'' ~ 4'' |
| Material we can do | Stainless steel 304/316 |
| Material in stock | ASTM A351 CF8(304), ASTM A351M CF8M(316) |
| Thread | BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B 0203/2(PT), KS B0221/2(PT), etc.. |
| Working Pressure | 150LB |
| Temperature | -20°C to +220°C |
| Physical Property | Tensile strength≥485Mpa, Yield strength≥205Mpa, Elongation≥35% |
| Surface | Pickling and Peeling |
| Model | Union |
| Connection | Male Thread |
| Shape | Equal |
| Certificate | ISO 9001:2015, ISO14001:2015, CE, ROHS, KC, etc.. |
| Application | Suitable for Air, Natural Gas, Oil, Steam, Water and so on. |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Cartons with wooden boxes | |
| Or as buyer's requirements | |
| Port | Ningbo/Shanghai, China |
| Delivery Details | According to the quantities and specifications of each order |
| A complete stock to provide fast deliveries for small orders. | |
| Normal delivery times is from 30 to 45 days after receiving the deposit | |
| Sample | Offer free samples and freight collected. |
| OEM and ODM | Accepted and professional. Buyer's drawing or designs are available |
| Material test report | is available upon request when placing order. |
